OIL PUMP/OIL SYSTEM - N15CCC/CCV ALL OPTIONS (49INDIANOILPUMP15) para INDIAN CHIEF CLASSIC / CHIEF VINTAGE de 2015

FILTRO DE ACEITE/ADAPTOR, AND AFORADOR DE ACEITE

PUSHRODS - N15CCC/CCV ALL OPTIONS (49INDIANPUSHROD14)

OIL PUMP/OIL SYSTEM - N15CCC/CCV ALL OPTIONS (49INDIANOILPUMP15)

1

TUBE-OIL SCAVENGE

2521284

153,15€ Precio unitario con IVA

2

SCREW

7517739

14,42€ Precio unitario con IVA

3

OIL INLET SCREEN; SCAVENGE

2521285

80,20€ Precio unitario con IVA

4

O-RING

5414595

4,02€ Precio unitario con IVA

5

OIL FEED PIPE

2521318

2522439

161,28€ Precio unitario con IVA

6

SOCKET HEAD SCREW; 6 MM X 15 MM

7517272

12,46€ Precio unitario con IVA

7

COUPLER-OIL FEED;CAM COVER

2521320

52,91€ Precio unitario con IVA

8

O-RING 10.90 X 1.78

5412027

4,02€ Precio unitario con IVA

9

SCREW HXFLHD M6X115

7517256

15,63€ Precio unitario con IVA

10

OIL INLET PICKUP SCREEN

2521454

80,20€ Precio unitario con IVA

11

OIL PUMP ASSEMBLY

1205045

647,96€ Precio unitario con IVA

12

FITTING-3/8MNPT X 1/8FNPT

5138224

5140352

60,45€ Precio unitario con IVA

13

PISTON

*******

No disponible

14

DOWEL-PIN M3X50

7662123

36,08€ Precio unitario con IVA

15

OIL PUMP DRIVE GEAR

2521477

64,15€ Precio unitario con IVA

16

THRUST WASHER

7555977

12,46€ Precio unitario con IVA

17

EXTERNAL RETAINING RING; 12 MM

7710645

2,41€ Precio unitario con IVA

18

PISTON COOLING NOZZLE REAR

2521317

2522136

80,20€ Precio unitario con IVA

19

PISTON COOLING NOZZLE FRONT

2521316

2522440

231,40€ Precio unitario con IVA

20

O-RING

5414595

4,02€ Precio unitario con IVA

21

SCR-M5X0.8X10 SOC/CP-D

7517847

6,44€ Precio unitario con IVA

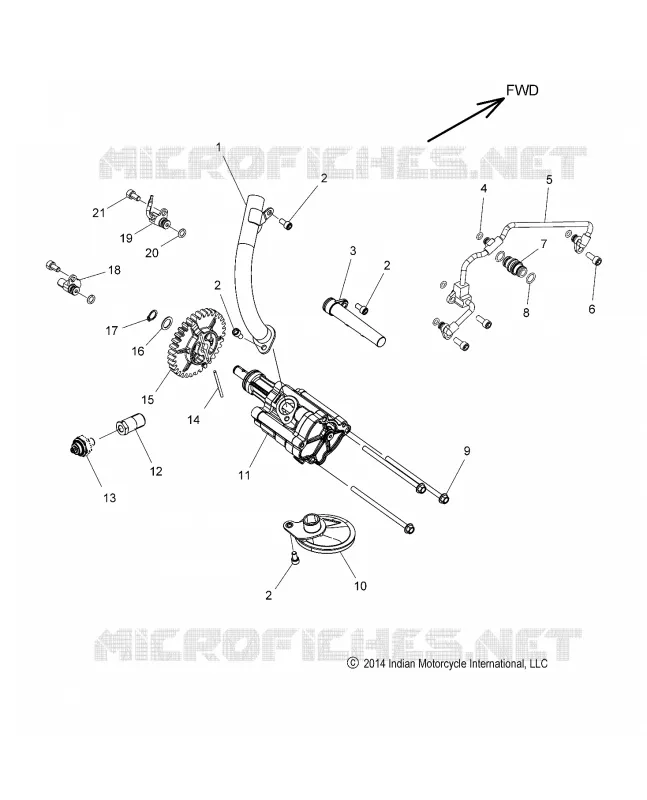

En esta página encontrará el esquema detallado OIL PUMP/OIL SYSTEM - N15CCC/CCV ALL OPTIONS (49INDIANOILPUMP15) INDIAN. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original INDIAN.

Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
