ENGINE, OIL SYSTEM para INDIAN SCOUT BOBBER de 2018

ENGINE, OIL SYSTEM

1

DIPSTICK; INDIAN

5451846

56,13€ Precio unitario con IVA

2

ADAPTER DIPSTICK CB BLACK

5139173-657

9999999

No disponible

3

SEAL-DIPSTICK ADAPTER

5415005

8,30€ Precio unitario con IVA

4

SCR SOCHD M6X15

7517775

8,30€ Precio unitario con IVA

5

SCR-BTNHD M5X.8X12 0600129

7518817

8,05€ Precio unitario con IVA

6

SHIELD-GEAR CRANK

5258759

5275219

61,75€ Precio unitario con IVA

7

O-RING; .612 X .818 X .103

5413837

8,30€ Precio unitario con IVA

8

OIL INLET PRESSURE TUBE

2521510

104,79€ Precio unitario con IVA

9

SCR-SOCHD M6X50 0600084

7518348

8,30€ Precio unitario con IVA

10

WASHER

7556054

15,63€ Precio unitario con IVA

11

OIL PUMP GEAR

5452831

56,13€ Precio unitario con IVA

12

SHIELD-GEAR OIL PUMP

5258842

52,91€ Precio unitario con IVA

13

OIL PUMP ASSEMBLY

1205470

246,83€ Precio unitario con IVA

14

OIL FILTER NIPPLE

2521388

42,10€ Precio unitario con IVA

15

OIL FILTER

2520799

17,86€ Precio unitario con IVA

16

SCR-SOCFLGHD M6X1.0X25

7520179

9,69€ Precio unitario con IVA

17

OIL INLET SCREEN; SCAVENGE

2521285

80,20€ Precio unitario con IVA

18

SOCKET PLUG; 12 MM X 1.5 MM

7052306

31,75€ Precio unitario con IVA

19

COPPER WASHER

5812232

4,50€ Precio unitario con IVA

20

DUAL SCAVENGE OIL PUMP ASSEMBLY

1205329

231,40€ Precio unitario con IVA

21

SCREW SOCHD M6X60

7517270

8,05€ Precio unitario con IVA

22

O-RING 12.42 X 15.98 X 1.78

5414100

1,83€ Precio unitario con IVA

23

TUBE-SCAVENGE INLET

2521479

2522090

88,21€ Precio unitario con IVA

24

SOCKET HEAD SCREW; 6 MM X 15 MM

7517272

12,46€ Precio unitario con IVA

25

SCR-M5X0.8X10 SOC/CP-D

7517847

6,44€ Precio unitario con IVA

26

ASM. PISTON COOLING JET FRONT

1205134

79,39€ Precio unitario con IVA

27

ASM. PISTON COOLING JET REAR

1205135

79,39€ Precio unitario con IVA

28

TUBE-SCAVENGE OIL RETURN

2521384

96,73€ Precio unitario con IVA

29

PICKUP-SCAVENGE

2521480

80,20€ Precio unitario con IVA

30

ASM-OIL PICKUP

2521826

56,13€ Precio unitario con IVA

30

O-RING 3-908

5416365

8,30€ Precio unitario con IVA

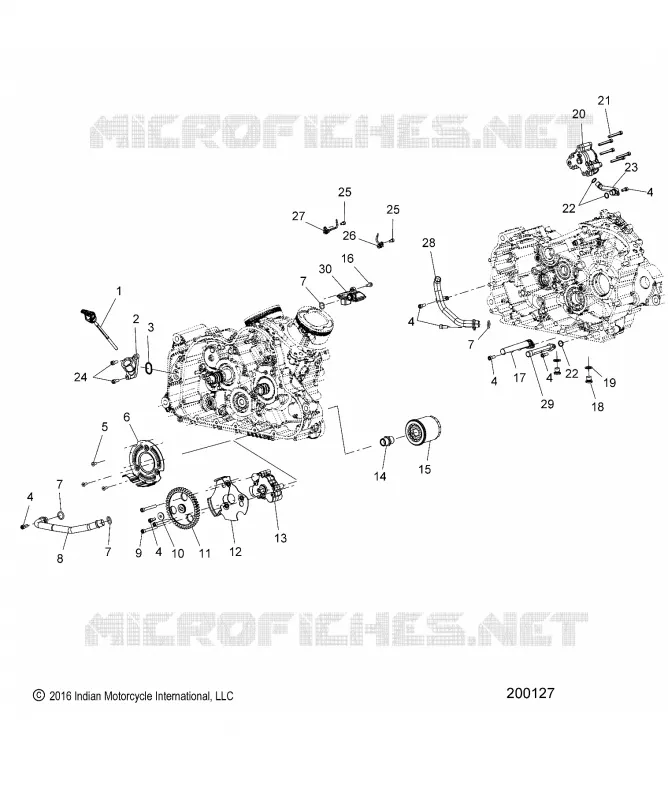

En esta página encontrará el esquema detallado ENGINE, OIL SYSTEM INDIAN. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original INDIAN.

Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
