1
Cilindrada
1720
2
Año
2013
3
Acabado
CHIEF CLASSIC / DARK HORSE / VINTAGE
4
Catálogo de recambios
ELECTRICA, HEADLAMP AND HOUSING
5
Despiece
Catálogo de recambios
STARTER, JACKSHAFT KIT - N131C/D/V ALL OPTIONS (INDIANKITS13CC)
por
HORN - N131C/D/V ALL OPTIONS (INDIANHORN12CC)

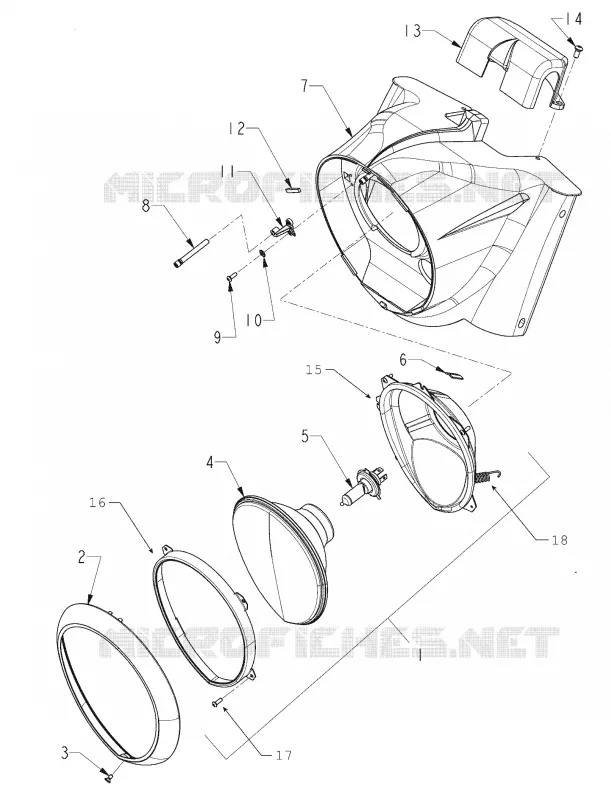

ELECTRICA, HEADLAMP AND HOUSING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
RevB-HEADLIGHT ASSY
N51366241
9999999
No disponible
2
RevB-TRIM RING OUTER
N51392163
9999999
No disponible
2
RevA-TRIM RINGOUTERMAT BLK
N51300066
9999999
No disponible
3
RevA-8-32X.38 FHCS;Z(79900017)
N70100066
9999999
No disponible
4
RevA-HEADLAMP KIT
N51300008
9999999
No disponible
5
RevA-BULB; H4 LL
N60600005
9999999
No disponible
6
RevB-HEADLIGHT SPACER
N51300040
9999999
No disponible
7
RevA-HDLT HSGFLSH TRNMAT BLK
N51300067
9999999
No disponible
7
RevA-HLIGHT HSGFLSH TRNCHR
N51300085
9999999
No disponible
7
RevD-HEADLIGHT HOUSINGCHR
N51366116
9999999
No disponible
8
Screw Headlight Adjust
N70162642
No disponible
9
RevA-8-32X.50 ;BLK(79900007)
N70100064
9999999
No disponible
10
RevA-LCKWSH TYP AEX(79900029)
N70496372
9999999
No disponible
11
RevA-ADJUSTER SCREW BRKT
N51300062
9999999
No disponible
12
RevB-OUTER TRIM RING SPACER
N51300041
9999999
No disponible
13
Cover Riser Chrome [Classic Vintage]
5138033-156
9999999
No disponible
13
Cover Riser Blk [Dark Horse]
5138033-266
9999999
No disponible
14
RevA-1/4-20X.50 CHR(79900007)
N70100046
9999999
No disponible
15
RevD-HEADLIGHT BUCKET
N51392152
9999999
No disponible
16
RevA-TRIM RING INNER
N51392150
9999999
No disponible
17
RevA-8-32X.50 ;Z(79900007)
N70196471
9999999
No disponible
18
RevA-TENSION SPRING
N51300028
9999999
No disponible

En esta página encontrará el esquema detallado ELECTRICA, HEADLAMP AND HOUSING INDIAN. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original INDIAN.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
