ENGINE, ESCAPE ASM. para INDIAN SCOUT BOBBER de 2018

ENGINE, ESCAPE ASM.

1

ASM. MUFFLER UPPER E4 INTL BLK [INTL]

1263025-266

9999999

No disponible

1

ASM. MUFFLER UPPER BLK

1262908-266

1262908-922

709,67€ Precio unitario con IVA

2

ASM. MUFFLER LOWER BLK

1262907-266

1262907-922

709,67€ Precio unitario con IVA

2

ASM. MUFFLER LOWER E4 INTL BLK [INTL]

1263026-266

9999999

No disponible

3

SCR-HXFL-M8X1.25X20 8.8 ZPC

7520031

8,05€ Precio unitario con IVA

4

EXHAUST CLAMP; SLINGSHOT

7081179

60,45€ Precio unitario con IVA

5

SCR-M8X1.25X45 8.8 DOG PT ZPB

7520549

8,05€ Precio unitario con IVA

6

WSHR-FLAT 8.4X30.0X2.0 0600090

7556219

11,07€ Precio unitario con IVA

7

EXHAUST ISOLATOR

5415881

12,17€ Precio unitario con IVA

8

FLANGED BUSHING; 8.2 X 12 X 19.5

5633598

6,44€ Precio unitario con IVA

9

MOUNT EXHAUST

5633742-658

9999999

No disponible

10

SOCKET HEAD SCREW 10 MM X 1.5 MM X 35 MM

7519959

3,21€ Precio unitario con IVA

11

WSHR-FL 17X2.5

7556236

12,46€ Precio unitario con IVA

12

NUT-M16X1.5

7540001

8,30€ Precio unitario con IVA

13

NUT HXFLGHD M8 X 1.25

7547014

12,46€ Precio unitario con IVA

14

EXHAUST GASKET HEADER

5261515

5271416

79,39€ Precio unitario con IVA

15

PISTON

*******

No disponible

16

HEADPIPE REAR ISOG CHR [BUILT TO 3/1/2018]

1263138-156

1263403-156

843,70€ Precio unitario con IVA

16

ASM. HEADPIPE EXHAUST REAR ISO LV LG BLK [INCL. SHIELDS][BUILT FROM 3/1/2018]

1263222-266

1263405-922

1 085,82€ Precio unitario con IVA

16

HEADPIPE REAR ISOG LN CHR

1263187-156

1263403-156

843,70€ Precio unitario con IVA

16

ASM. HEADPIPE EXHAUST REAR BLK [INCL. SHIELDS][BUILT TO 3/1/2018]

1263054-266

1263405-922

1 085,82€ Precio unitario con IVA

16

CLAMP HOSE

7081623

6,44€ Precio unitario con IVA

16

SHIELD-EXHAUST REAR UPPER BLK [BUILT TO 3/1/2018]

1263143-266

1263143-922

No disponible

16

SHIELD-EXHAUST REAR LOWER BLK [BUILT TO 3/1/2018]

1263144-266

9999999

No disponible

17

SHIELD EXH FRNT LV BLK [49 STATE ONLY]

1263055-266

9999999

No disponible

17

ASM. HEADPIPE EXHAUST FRONT BLK [INCL. SHIELD][BUILT TO 3/1/2018]

1263053-266

1263479-922

632,53€ Precio unitario con IVA

17

CLAMP HOSE

7081623

6,44€ Precio unitario con IVA

17

ASM. HEADPIPE EXHAUST FRONT LV LG BLK [INCL. SHIELD][BUILT FROM 3/1/2018]

1263221-266

1263479-922

632,53€ Precio unitario con IVA

18

EXHAUST SPACER

5141244

8,30€ Precio unitario con IVA

19

SHOULDER SPACER; EXHAUST

5141245

11,07€ Precio unitario con IVA

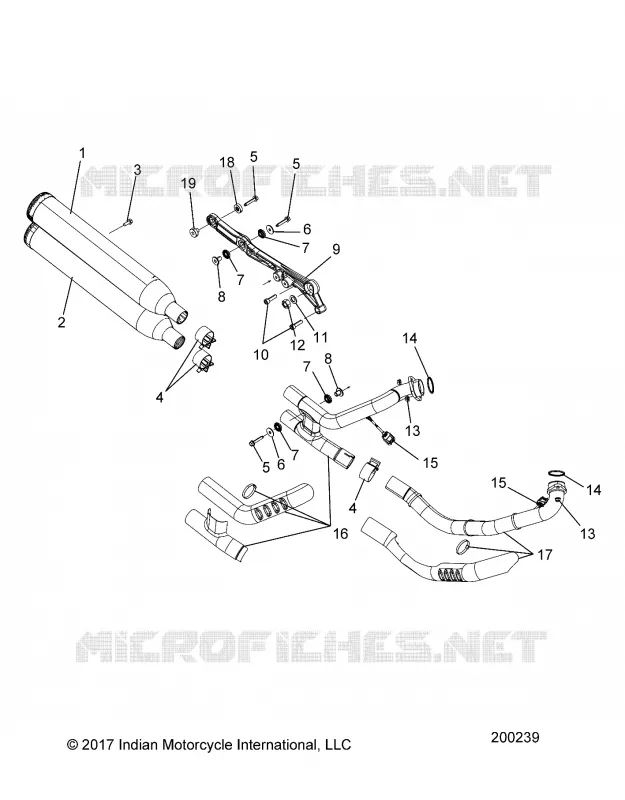

En esta página encontrará el esquema detallado ENGINE, ESCAPE ASM. INDIAN. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original INDIAN.

Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
