PISTÓN Y CIGÜEÑAL para INDIAN CHIEFTAIN / ROADMASTER de 2015

PISTÓN Y CIGÜEÑAL

1

RING KIT PISTON 101 MM

2203006

112,84€ Precio unitario con IVA

2

ASM-PISTON 101MM

3022648

3023065

323,97€ Precio unitario con IVA

3

PIN WRIST

5131860

54,12€ Precio unitario con IVA

4

C-CLIP; ROUNG(2)

7710479

12,46€ Precio unitario con IVA

5

BEARING CONNECTING ROD 52MM BLU

3514790-003

36,08€ Precio unitario con IVA

5

BEARING CONNECTING ROD 52MM BLK.

3514790-001

36,08€ Precio unitario con IVA

5

BEARING CONNECTING ROD 52MM ORG.

3514790-002

36,08€ Precio unitario con IVA

6

CONNECTING ROD ASSEMBLY 184MM

3022465

9999999

No disponible

7

ASM-CRANKSHAFT 56.5MM

3022467

9999999

No disponible

8

SCR-CAP MJ9X1-4H-6H

7518524

11,07€ Precio unitario con IVA

9

SOCKET HEAD SCREW; 6 MM X 25 MM

7518995

9,69€ Precio unitario con IVA

10

PIN; DOWEL; 6 X 20

3234330

12,46€ Precio unitario con IVA

11

GEAR-BALANCER DRIVE

6230688

6237721

343,62€ Precio unitario con IVA

12

SHAFT-BALANCE MACH

5138087

5141115

364,65€ Precio unitario con IVA

13

HEX FLANGE SCREW; 10 X 1.5 X 40

7519763

9,69€ Precio unitario con IVA

14

WSHR-36X10X4 HARD

7556744

12,46€ Precio unitario con IVA

15

ASM-GEAR BALANCER

1333122

1336998

364,65€ Precio unitario con IVA

16

KEY-SQR-M8X7X14

7710708

11,07€ Precio unitario con IVA

17

RING-RTNG EXT 55MM

7710529

9999999

No disponible

18

GEAR-BAL SHAFT;BLASH

6230619

9999999

No disponible

19

SPRING-SPLIT GEAR

7044254

7044661

8,30€ Precio unitario con IVA

20

GEAR-BALANCE SHAFT

6230618

9999999

No disponible

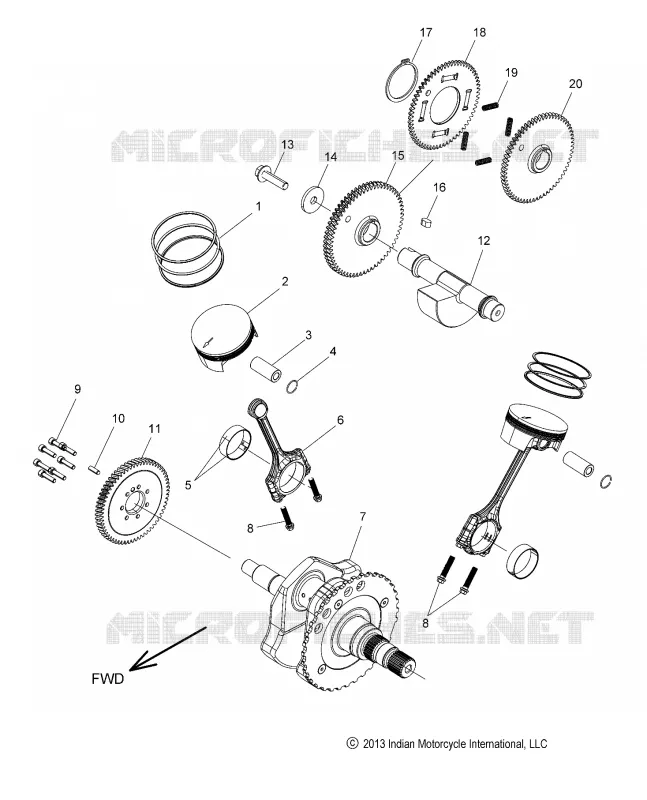

En esta página encontrará el esquema detallado PISTÓN Y CIGÜEÑAL INDIAN. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original INDIAN.

Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
