CHASIS, BASTIDOR ASM. para INDIAN CHIEFTAIN / ROADMASTER de 2015

CHASIS, BASTIDOR ASM.

1

MAINFRAME FRONT TOURING BLK

5138127-626

5143586-626

1 944,20€ Precio unitario con IVA

2

SCR-HXFL-M12X1.75X50 10.9 ZPB

7519845

12,46€ Precio unitario con IVA

3

SCR-HXFL-M12X1.75X120

7519794

36,08€ Precio unitario con IVA

4

SCR-M10X1.50X35 HX/FL-Y/D

7518334

8,30€ Precio unitario con IVA

5

FRAME MID RH

5138129-329

5143588-329

1 063,81€ Precio unitario con IVA

6

DOWL HOL M13X10

7663008

8,30€ Precio unitario con IVA

7

WELD-SUBFRAME REAR

1019138

1024782

1 203,20€ Precio unitario con IVA

8

HEX FLANGE SCREW; 8 MM X 20 MM

7517838

8,05€ Precio unitario con IVA

9

FRAME REAR LOWER

1019383-329

1024636-329

377,97€ Precio unitario con IVA

10

TUFLOK RIVET

7661855

2,41€ Precio unitario con IVA

11

SHIELD-DEBRIS

5439852

9999999

No disponible

12

NUT-HXFL-M12X1.75 CL10 ZB

7547686

8,30€ Precio unitario con IVA

13

FRAME MID LH

5138128-329

5143587-329

1 115,16€ Precio unitario con IVA

14

SPACER-FRAME

5138436

11,07€ Precio unitario con IVA

15

DOWEL-HOLLOW M12

7662129

15,63€ Precio unitario con IVA

16

SCR-SHCS-M10X1.5X100

7519793

36,08€ Precio unitario con IVA

17

ASM. TUBE FRAME LH BLACK

1018969-626

1026128-626

431,96€ Precio unitario con IVA

18

SCR-SH-M10X1.5X25 8.8 ZPB

7519890

8,30€ Precio unitario con IVA

19

SOCKET HEAD SCREW 10 MM X 1.5 MM X 60 MM

7519843

12,46€ Precio unitario con IVA

20

SOCKET HEAD SCREW; 8 MM X 20 MM

7517410

13,23€ Precio unitario con IVA

21

ENGINE MOUNT

5257184

48,11€ Precio unitario con IVA

22

NUT-HEX-M10X1.5 8 ZB3 NYL

7547658

3,21€ Precio unitario con IVA

23

ASM. TUBE FRAME RH BLACK

1018970-626

431,96€ Precio unitario con IVA

24

ANTENNA BRACKET

5258057

15,63€ Precio unitario con IVA

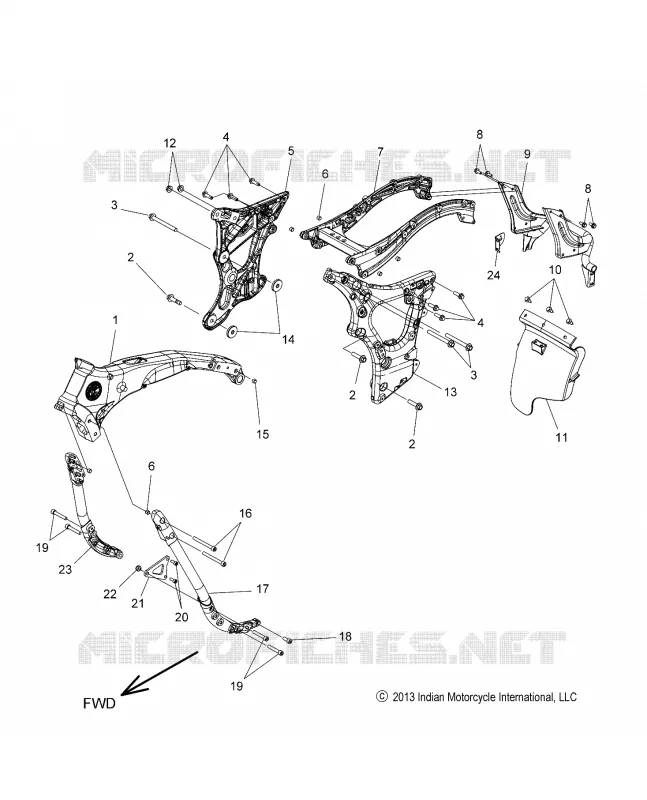

En esta página encontrará el esquema detallado CHASIS, BASTIDOR ASM. INDIAN. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original INDIAN.

Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
