FAIRING ASM 3 - N15TCAAA/TRAAA ALL OPTIONS (49INDIANFAIRING143) para INDIAN CHIEFTAIN / ROADMASTER de 2015

FAIRING ASM 2 - N15TCAAA/TRAAA ALL OPTIONS (49INDIANFAIRING142)

FAIRING ASM, WINDSHIELD MOUNT - N15TCAAA/TRAAA ALL OPTIONS (200029)

FAIRING ASM 3 - N15TCAAA/TRAAA ALL OPTIONS (49INDIANFAIRING143)

1

PANEL DASH

5451718

9999999

No disponible

2

BOLT SHOULDER M4.2 X 1.40 X 1

7518518

3,21€ Precio unitario con IVA

3

GROMMET-ROUND

5413055

3,21€ Precio unitario con IVA

4

SPEAKER GRILL; RIGHT; INDIAN

5439885

9999999

No disponible

5

BUTTON HEAD HEX SCREW 6MM X 1.0MM X 15MM

7519774

8,05€ Precio unitario con IVA

6

SWITCH PLUG; ACC

5450645

9999999

No disponible

7

SPEAKER GRILL; LEFT; INDIAN

5439884

9999999

No disponible

8

ROUTING CLIP

7081496

8,30€ Precio unitario con IVA

9

SUPPORT BRACKET; FAIR; RIGHT

5257968

9999999

No disponible

10

HEX HEAD FLANGE SCREW; 6 MM X 16 MM

7518591

3,00€ Precio unitario con IVA

11

VOLUME SPEAKER LH

5451168

93,44€ Precio unitario con IVA

12

U-CLIP SPEED NUT; 4.2 MM

7547386

4,83€ Precio unitario con IVA

13

COMPARTMENT DOOR LEFT INDIAN

5450554

9999999

No disponible

14

CUBBY-STORAGE RH IND

5450553

9999999

No disponible

15

DAMPER-STORAGE DOOR;IND

7081898

9999999

No disponible

16

NUT

7547126

6,44€ Precio unitario con IVA

17

SCR-HH-M4X0.7X30 8.8 ZNC

7519162

6,44€ Precio unitario con IVA

18

SCR-#8-18X.50 PH/PN HI/LO B

7517910

9,69€ Precio unitario con IVA

19

PLATE-HINGE FAIRING IND

5450620

9999999

No disponible

20

SPRING-TORSION

7044097

12,17€ Precio unitario con IVA

21

CLEVIS PIN; 1/4 X 3/4

7661843

4,83€ Precio unitario con IVA

22

HAIRPIN-COTTER 3/16-1/4

7661124

8,05€ Precio unitario con IVA

23

COMPARTMENT DOOR RIGHT INDIAN

5450555

9999999

No disponible

24

VOLUME SPEAKER RH

5451169

93,44€ Precio unitario con IVA

25

SUPPORT BRACKET; FAIR

5257057

9999999

No disponible

26

SCR-HXBH M4.2X1.4X25 8.8 ZOD

7519309

12,46€ Precio unitario con IVA

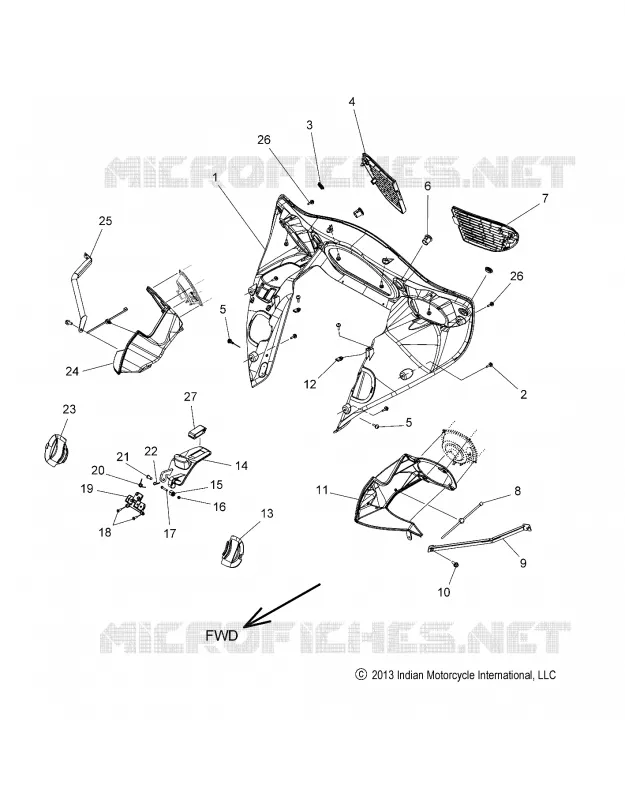

En esta página encontrará el esquema detallado FAIRING ASM 3 - N15TCAAA/TRAAA ALL OPTIONS (49INDIANFAIRING143) INDIAN. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original INDIAN.

Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
