PISTÓN Y CIGÜEÑAL para INDIAN SCOUT de 2015

PISTÓN Y CIGÜEÑAL

1

KIT RINGS PISTON (+0.25MM)

2204735

No disponible

1

KIT RINGS PISTON (+0.50MM)

2204731

No disponible

1

STD RING KIT

2204733

128,97€ Precio unitario con IVA

2

PISTON ASSEMBLY 99 MM

3022488

262,26€ Precio unitario con IVA

3

C-CLIP; ROUNG(2)

7710479

12,46€ Precio unitario con IVA

4

PISTON PIN; 22 MM X 12.8 MM X 56.6 MM

3022291

72,18€ Precio unitario con IVA

5

ASM. CONNECTING ROD [INCL. 7]

1205310

3023055

434,78€ Precio unitario con IVA

6

BEARING CONNECTING ROD ORANGE

3514804-159

3514966-159

30,07€ Precio unitario con IVA

6

BEARING CONNECTING ROD BLUE

3514804-027

3514966-027

30,07€ Precio unitario con IVA

6

BEARING CONNECTING ROD BLACK

3514804-067

3514966-067

30,07€ Precio unitario con IVA

7

CONROD BOLT; 9 MM X 1.0 MM

7519833

19,24€ Precio unitario con IVA

8

WOODRUFF KEY

7721122

12,46€ Precio unitario con IVA

9

ASM-CRANKSHAFT

1204692

3023054

2 002,90€ Precio unitario con IVA

10

ASM-GEAR CRANKSHAFT

1333086

9999999

No disponible

11

WASHER-FLAT ISO7415-M20 HARD

7556518

15,63€ Precio unitario con IVA

12

HEX NUT; 20 MM X 1.5 MM

7547477

24,05€ Precio unitario con IVA

13

ASM-BALANCE SHAFT

1204839

408,82€ Precio unitario con IVA

14

WASHER-FLAT 13.5X38.5X2.7

7556771

15,63€ Precio unitario con IVA

15

SCR-HEXHD M12X45 0600088

7518575

36,08€ Precio unitario con IVA

16

SPRING SPLIT GEAR

7044461

No disponible

17

RETAINING RING

7710472

9,69€ Precio unitario con IVA

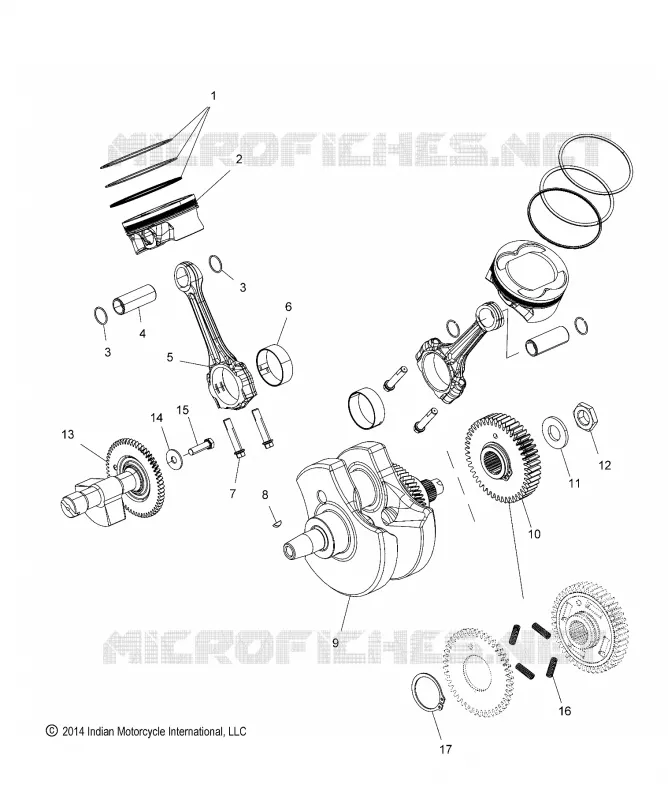

En esta página encontrará el esquema detallado PISTÓN Y CIGÜEÑAL INDIAN. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original INDIAN.

Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
