CILINDRO AND CYL. HEAD MOUNTING para INDIAN SCOUT de 2015

CILINDRO AND CYL. HEAD MOUNTING

1

SEMS HEAD BOLT; 11 MM X 1.25 MM X 150 MM

7520203

24,05€ Precio unitario con IVA

2

SCR-HXFLG M6X1.0X80

7520115

12,46€ Precio unitario con IVA

3

ASM. CYLINDER FRONT 99MM BRNZ [INCL. DOWELS]

3022486-687

539,96€ Precio unitario con IVA

4

STUD-EXH MNT M8X1.25X22 ZC

5137389

15,63€ Precio unitario con IVA

5

CYLINDER HEAD GASKET; FRONT

5813878

76,94€ Precio unitario con IVA

5

CYLINDER HEAD GASKET; REAR

5813960

76,94€ Precio unitario con IVA

6

COOLANT DIVERTER

5451046

21,16€ Precio unitario con IVA

7

ASM. CYLINDER REAR 99MM BRNZ [INCL. DOWELS]

3022487-687

539,96€ Precio unitario con IVA

8

BASE GASKET; REAR

5813952

48,11€ Precio unitario con IVA

8

BASE GASKET; FRONT

5813879

48,11€ Precio unitario con IVA

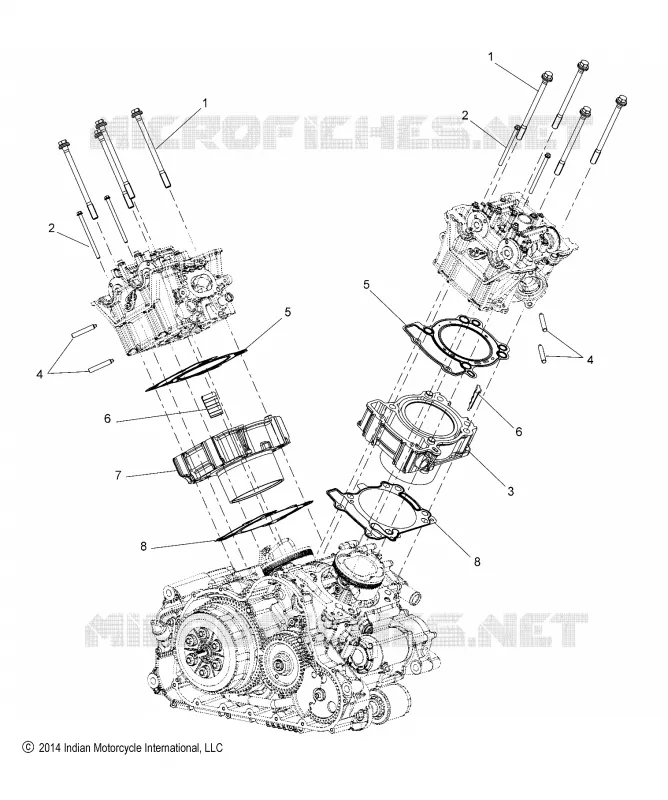

En esta página encontrará el esquema detallado CILINDRO AND CYL. HEAD MOUNTING INDIAN. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original INDIAN.

Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
