ELECTRICAL COMPONENTS 2 - N15TCAAA/TRAAA ALL OPTIONS (49INDIANELECT215R) para INDIAN CHIEFTAIN / ROADMASTER de 2015

TRUNK LOCK AND TAILLIGHT - N15TRAAA ALL OPTIONS (49INDIANTRUNKLOCK15R)

ELECTRICAL COMPONENTS 1 - N15TCAAA/TRAAA ALL OPTIONS (49INDIANELECT15R1)

ELECTRICAL COMPONENTS 2 - N15TCAAA/TRAAA ALL OPTIONS (49INDIANELECT215R)

1

SENSOR T-MAP

2411528

169,69€ Precio unitario con IVA

2

SCR-HXWSHRHD M5X16

7518570

8,05€ Precio unitario con IVA

3

SWITCH OIL PRESSURE

4012668

9999999

No disponible

4

SENSOR CRANK POSITION

2411589

161,22€ Precio unitario con IVA

5

SOCKET HEAD SCREW; 6 MM X 15 MM

7517272

12,46€ Precio unitario con IVA

6

TIP OVER SENSOR 45 DEGREES

4011296

4080957

153,15€ Precio unitario con IVA

7

NUT

7547126

6,44€ Precio unitario con IVA

8

WSHR-FL 4.3X14X0.8 0600090

7556477

6,44€ Precio unitario con IVA

9

WELD-STUD PLATE;M4

1016624

36,08€ Precio unitario con IVA

10

AIR TEMPERATURE GAUGE SENSOR

2410443

128,97€ Precio unitario con IVA

11

TIRE PRESSURE SENSOR

2412417

2208712

254,55€ Precio unitario con IVA

12

SCREW

7519796

15,63€ Precio unitario con IVA

13

SENSOR CYLINDER HEAD TEMP

4014970

112,84€ Precio unitario con IVA

14

PLUNGER SIDESTAND SWITCH

4014289

82,44€ Precio unitario con IVA

15

SCREW SOCHD M5X16

7516610

8,05€ Precio unitario con IVA

16

SENSOR OXYGEN

4013979

4016021

300,83€ Precio unitario con IVA

17

SOLENOID STARTER C1100 W/WASHER

4014471

109,92€ Precio unitario con IVA

18

SCREW

7517704

12,46€ Precio unitario con IVA

19

DETONATION BOSCH SENSOR

2410369

145,09€ Precio unitario con IVA

20

SCR-M8X1.25X30 HX/FL-YD

7517262

9,69€ Precio unitario con IVA

21

PANDUIT STRAP

7080138

3,48€ Precio unitario con IVA

22

TRUNK LIGHT SWITCH

4014769

30,07€ Precio unitario con IVA

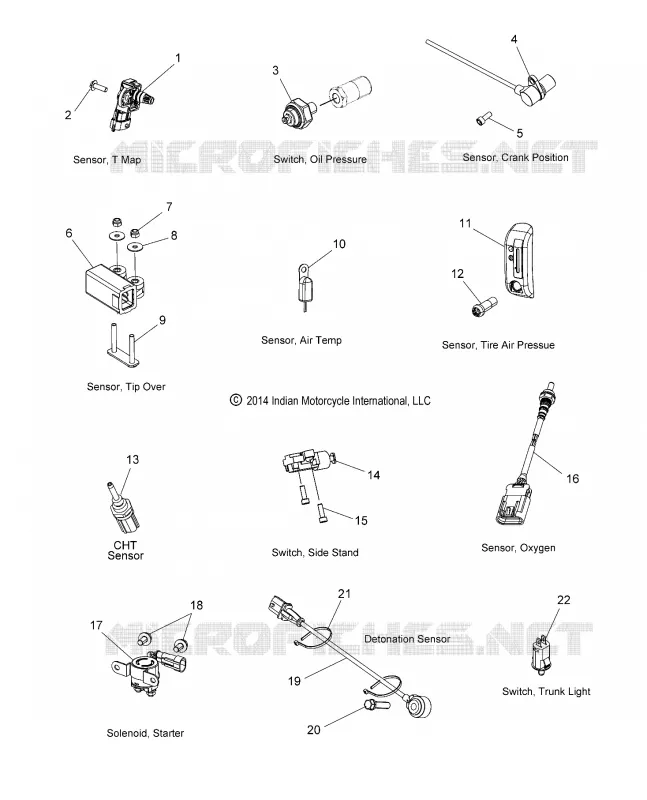

En esta página encontrará el esquema detallado ELECTRICAL COMPONENTS 2 - N15TCAAA/TRAAA ALL OPTIONS (49INDIANELECT215R) INDIAN. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original INDIAN.

Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
