1
Cilindrada
1720
2
Año
2012
3
Acabado
CHIEF CLASSIC / VINTAGE / DARK HORSE
4
Catálogo de recambios
ESCAPE SYSTEM
5
Despiece
Catálogo de recambios
TREN, EMBRAGUE
por
MOTOR, MONTAJE DE MOTOR

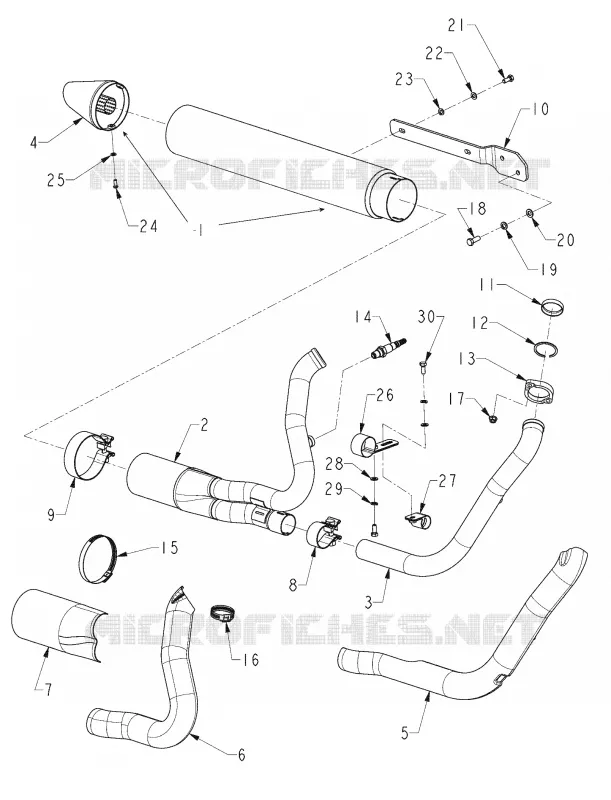

ESCAPE SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
22
23
21
1
RevA-MUFFLER ASSY W/TIP
N50700037
9999999
No disponible
1
RevA-MUFFLER ASSY;W/TIP;MATBLK
N50700043
9999999
No disponible
2
RevC-COMMON VOLUME ASSY
N50700018
9999999
No disponible
3
RevA-FRONT HEADPIPE ASSY
N50700027
9999999
No disponible
4
RevA-OE MUFF TIP ASSYMATB
N50700044
9999999
No disponible
4
RevD-OE MUFFLER TIP ASSY
N50700024
9999999
No disponible
5
RevA-FR HT SHIELD ASSYMATBLK
N50700041
9999999
No disponible
5
RevB-FRONT HEAT SHIELD ASSY
N50700028
9999999
No disponible
6
RevA-R HT SHIELD ASSYMATBLK
N50700047
9999999
No disponible
6
RevB-REAR HEAT SHIELD ASSY
N50700029
9999999
No disponible
7
RevD-CV HEAT SHIELD ASSY
N50700020
9999999
No disponible
7
RevA-CV SHIELD ASSYMATTE BLK
N50700048
9999999
No disponible
8
RevA-FR HEADPIPE CLAMP48.5mm
N73137411
9999999
No disponible
9
RevA-MUFFLER CLAMP;100mm
N73137507
9999999
No disponible
10
RevB-MUFFLER BRACKET
N50737522
9999999
No disponible
11
RevA-EXHAUST GASKET
N50701319
9999999
No disponible
12
RevB-EXHAUST SNAP RING
N50737164
9999999
No disponible
13
RevA-EXHAUST FLANGE
N50737026
9999999
No disponible
14
HEATED OXYGEN SENSOR
4011853
208,27€ Precio unitario con IVA
15
RevA-108mm WORM DRIVE CLAMP
N73137512
9999999
No disponible
16
RevA-51mm WORM DRIVE CLAMP
N50700003
9999999
No disponible
17
RevA-M8X1.25NUT FLG(79900020)
N70300006
9999999
No disponible
18
RevA-3/8-16X1. G8Z(79900005)(10)
N70196173
9999999
No disponible
19
RevA-3/8LCKWSH SPLT R(79900015
N70496904
9999999
No disponible
20
RevA-3/8FLTWSH TYP BN(79900011
N70496895
9999999
No disponible
21
RevA-M8X1.25X20(79900006)
N70100055
9999999
No disponible
22
RevA-M8 FLTWSH;NORM(79900012)
N70400009
9999999
No disponible
23
RevB-M8 LCKWSHR;SPLT(79900016)
N70400015
9999999
No disponible
24
RevB-M6X1.X16 8.8 CR(79900008
N70196231
9999999
No disponible
24
RevA-M6X1.X16 ;;Z/B(79900008)
N70100096
9999999
No disponible
25
RevA-M6FLTWSH NRM B(79900012)
N70400063
9999999
No disponible
25
RevA-M6 FLTWSHNRMCR(79900012
N70400008
9999999
No disponible
26
RevB-FRONT HEADPIPE BRKT
N50700034
9999999
No disponible
27
RevB-FRT HEADPIPE FRAME BRKT
N50700035
9999999
No disponible
28
RevA-M8 FLTWSH;NORM(79900012)
N70400009
9999999
No disponible
29
RevB-M8 LCKWSHR;SPLT(79900016)
N70400015
9999999
No disponible
30
RevA-M8X1.25X20(79900006)
N70100055
9999999
No disponible

En esta página encontrará el esquema detallado ESCAPE SYSTEM INDIAN. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original INDIAN.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
