1
Cilindrada
1720
2
Año
2012
3
Acabado
CHIEF CLASSIC / VINTAGE / DARK HORSE
4
Catálogo de recambios

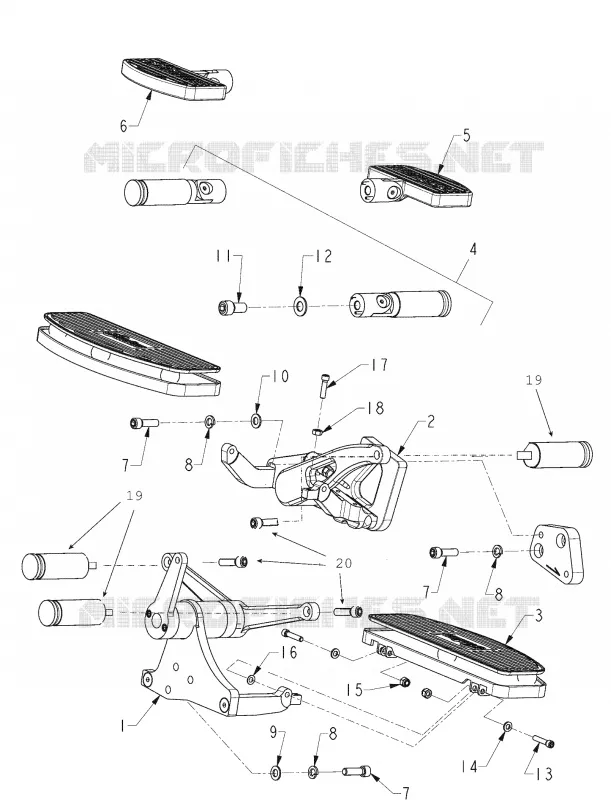

CHASSIS, FOOTPEGS AND FLOORBOARDS - N121C/V/D ALL OPTIONS (INDIANFOOTPEG12CC)
5
Despiece
Catálogo de recambios
REAR FENDER ASSEMBLY - N121C/V/D ALL OPTIONS (INDIANFENDERRR12CC)
por
FRONT BRAKE BRAKE LINE - N121C/V/D ALL OPTIONS (INDIANBRAKELINE12CC)
CHASSIS, FOOTPEGS AND FLOORBOARDS - N121C/V/D ALL OPTIONS (INDIANFOOTPEG12CC)
1
2
3
4
5
6
7
7
7
8
8
8
9
10
11
12
13
14
15
16
17
18
19
19
20
1
RevB-S.S. FOOT CTRL ASSY CHR
N50841091
9999999
No disponible
2
RevA-BS FOOT CTRL ASSYCHR
N50841072
9999999
No disponible
3
FLOORBOARD ASSEMBLY
N50841115
9999999
No disponible
4
RevA-PAS FOOTPEG SET;MAT BLK
N50800049
9999999
No disponible
4
RevA-PASSENGER FOOTPEG SET
N50800020
9999999
No disponible
5
RevA-PASS FLOORBOARD ASSY LH
N50800022
9999999
No disponible
6
RevA-PASS FLOORBOARD ASSY RH
N50800024
9999999
No disponible
7
RevB-3/8-16X1.25SHCS(79900003)
N70196154
9999999
No disponible
8
RevA-3/8LCKWSH SPLT R(79900015
N70496904
9999999
No disponible
9
RevA-3/8FLTWSH TYP BN(79900011
N70496895
9999999
No disponible
10
RevA-3/8FLTWSH TYP AN(79900011
N70400051
9999999
No disponible
11
RevA-1/2-13X1. SHCS;(79900003)
N70100032
9999999
No disponible
12
RevA-FLT WSHTYP B-N(79900011)
N70496892
9999999
No disponible
13
RevA-1/4-20X1.25 (79900003)
N70100049
9999999
No disponible
14
RevA-FLTWSH TYP BN S(79900011)
N70496894
9999999
No disponible
15
RevA-1/4-20 NUTNYLK(79900023)
N70396467
9999999
No disponible
16
RevB-1/4ID SPGWSH;SS;.023THK (10)
N70400043
9999999
No disponible
17
RevA-1/4-20X1. SHCS;(79900003)
N70196148
9999999
No disponible
18
RevA-1/4-20 NUT;J(79900013)
N70396853
9999999
No disponible
19
RevA-TOE PEG SET
N50800017
9999999
No disponible
20
RevB-1/4-20X.75 FHCS(79900017)
N70196147
9999999
No disponible

En esta página encontrará el esquema detallado CHASSIS, FOOTPEGS AND FLOORBOARDS - N121C/V/D ALL OPTIONS (INDIANFOOTPEG12CC) INDIAN. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original INDIAN.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
